Features: 1/2.8″ Progressive Scan CMOS
180° Panoramic,0.008Lux @F2.0,120dB,IP67 IK10,IR 15M
* Support PoE; Built-in Microphone; SD card, up to 256G
* Support H.265+/H.265/H.264+/H.264
* Integrated Junction Box
* AI Based Video Content Analysis, People Counting, Face Detection, Heat Map
Features: 1/1.8″ Progressive Scan CMOS
0.008Lux @F1.8,120dB,IP67 IK10,IR 15M
* Support PoE; Built-in Microphone; SD card, up to 256G
* Support H.265+/H.265/H.264+/H.264
*Support Built-in Mic
* AI Based Video Content Analysis, People Counting, Heat Map

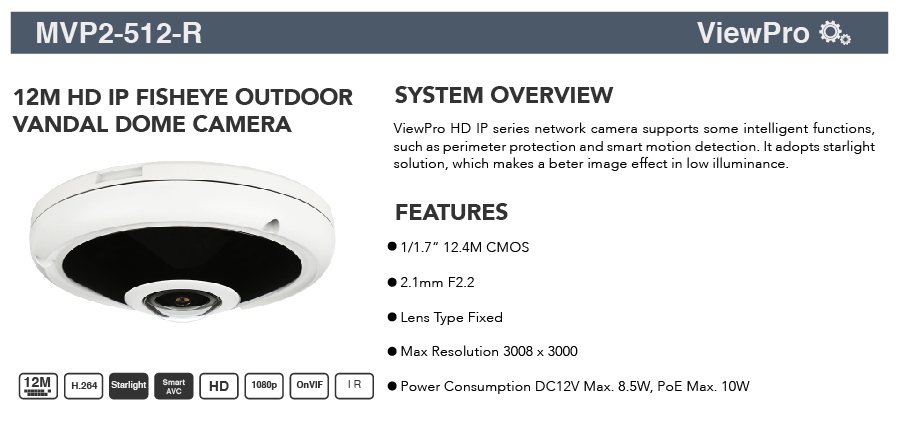

Features: 12MP Fisheye IP Camera
1/1.7"" 12.4M CMOS/ DWDR
Multi Profile: H.264, 265, MJPEG
Min. Illumination: 0.065Lux, 0.094 Lux
Features: PANORAMIC WDR In/Outdoor 2.8/4/6/8mm Dome Camera, 1/3” 4.0M CMOS x 4ea
Multi Profile: 1440p30 + 480p/30 with H.265 + MJPEG(Max SVGA) x 4 up to 12 sessions Max. Concurrent connections up to 16
Min. Illumination: Color: 0.41 Lux (F2.0) / BW - 0.022 Lux (F2.0)
Features: 1/2.8″ Progressive Scan CMOS
180° Panoramic, 0.012Lux @F2.0,120dB,IP67 IK10,IR 15M
* Support PoE; Built-in Microphone; SD card, up to 256G
* Support H.265+/H.265/H.264+/H.264
* Integrated Junction Box
* AI Based Video Content Analysis, People Counting, Face Detection, Heat Map
Features: Panarama Bullet IP Camera
1/1.8"" 8M CMOS / True WDR
H.265, H.264, MJPEG
Min. Illumination: 0.06lux (F2.0)
Features: 1/2.8″ Progressive Scan CMOS
1920*[email protected] @F1.6,140dB,IP66 IK10,IR 160M
* Support PoE; SD card, up to 256G, 4KV Surge Protection
* Support H.265+/H.265/H.264+/H.264
* 12X optical zoom, PTZ Position Display, 3D positioning
* 300 Preset Points, 8 Patrols, up to 48 presets each patrol; 4 Patterns
* 360° endless Pan,Pan Manual Speed: 0.1°~450°/s, Preset Speed: 450°/s
* -5°~90° Tilt, Tilt Manual Speed: 0.1°~360°/s, Preset Speed: 360°/s
* Multi port: Alarm I/O, Audio I/O, DC 12V
* AI Based Video Content Analysis, People Counting, Face Detection
Features: 2MP PTZ Camera
1/2.8"" 2.1M CMOS
Multi Profile: 3/ H.264, MJPEG
Min. Illumination: 0.01lux/0lux with IR (F1.6)
Features: 1/2.8″ Progressive Scan CMOS
1920*1080@60fps,0.005Lux @F1.6,140dB,IP66, IR140m
* Support PoE; SD card, up to 256G; IR LEDs & White LEDs
* Support H.265+/H.265/H.264+/H.264
*12X Optical Zoom, PTZ Position Display, 3D positioning,
* 300 Preset Points, 8 Patrols, up to 48 presets each patrol, 4 Patterns
* 360° Pan Range; Pan Manual Speed: 0.1°~50°/s, Preset Speed: 50°/s
* -45°~30° Tilt, Tilt Manual Speed: 0.1°~25°/s, Preset Speed: 25°/s
* AI Based Video Content Analysis, People Counting, Face Detection
* DC + PoE + Alarm (Default), DC + PoE + Audio (Optional)
* Wall Mount Bracket (Default), Pedestal Mount Bracket (Optional)
Features: 1/2.8″ Progressive Scan CMOS
1920*[email protected] @F1.6,140dB,IP66 IK10,IR 180M
* Support PoE, SD card, up to 256G;
* Support H.265+/H.265/H.264+/H.264
* New-generation PTZ Motor, 5X/20X/23X Optical Zoom;
* PTZ Position Display, 3D positioning
* 300 Preset Points, 8 Patrols, up to 48 presets each patrol, 4 Patterns
* 360° Pan Range, Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
* -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
* Multi port: Alarm I/O, Audio I/O, DC 12V
* AI Based Video Content Analysis, People Counting, Face Detection
Features: 1/2.8″ Progressive Scan CMOS
1920*1080@60fps [email protected],140dB,IP66 IK10, IR200M
* Support PoE; SD card, up to 256G, 6KV Surge Protection, Heater
* Support H.265+/H.265/H.264+/H.264
* 23X/30X/36X/42X Optical Zoom, PTZ Position Display, 3D positioning
* 300 Preset Points, 8 Patrols, up to 48 presets each patrol; 4 Patterns
* 360° endless Pan,Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
* -5°~90°(Auto Flip), Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
* Multi port: RS485, Alarm I/O 4/2, Audio I/O, AC 24V
* AI Based Video Content Analysis, People Counting, Face Detection
* Wall Mount Bracket A41 (Default)
Features: 1/2.8″ Progressive Scan CMOS
1920*1080@60fps,[email protected],140dB,IP66,IR 300m
*Smart Rain-sensing Wiper
* Support PoE; SD card, up to 256G, 6KV Surge Protection, Heater
* Support H.265+/H.265/H.264+/H.264
* 30X Optical Zoom; PTZ Position Display, 3D positioning,
* 300 Preset Points, 8 Patrols, up to 48 presets each patrol; 4 Patterns
* 360° endless Pan,Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
* -5°~90°(Auto Flip), Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
* Multi port: RS485, Alarm I/O 4/2, Audio I/O, AC 24V
* AI Based Video Content Analysis, People Counting, Face Detection
* Wall Mount Bracket A41 (Default)
Features: Support Milesight NVR + PTZ Camera
Support PoE & DC12V, Built-in Web Server
Up to 110 devices control,58x44(2.8"") ,Blue Screen,4-axis ,joystick
1 * RJ45 100/1000Mbps
1 * RS232
Features: IECEX、ATEX Certified
The explosion-proof camera can be applied for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.
Sun-shield, Wiper, Stainless steel 316L, 100 to 240 VAC, Max power consumption 25 W, IP68, Net weight 14.5 kg, 524 mm x 179 mm x 215 mm, 1/2.8"" Sensor
Starlight Network Module
1/2.8” CMOS, 5 MP, 2592 (H) x 1944 (V)@25/30 fps, 5.3 to 159 mm focal length, 30 x optical zoom, 16 x digital zoom, Support face, human and vehicle detection
IVS: Perimeter, Single virtual fence, Double virtual fences, Loiter, Converse (the five functions support the accurate detection of vehicle and human), People counting
Features: IECEX、ATEX Certified
The explosion-proof camera can be applied for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.
Sun-shield, Wiper, Stainless steel 316L, 1/2.8 Sensor , IR distance up to 100 m, 100 to 240 VAC, Max power consumption 36 W, IP68, Net weight 15.5 kg, 523.5 mm x 296.7 mm x 220.6 mm
Starlight Network Module
1/2.8” CMOS, 5 MP, 2592 (H) x 1944 (V)@25/30 fps, 5.3 to 159 mm focal length, 30 x optical zoom, 16 x digital zoom, Support face, human and vehicle detection
IVS: Perimeter, Single virtual fence, Double virtual fences, Loiter, Converse (the five functions support the accurate detection of vehicle and human), People counting
Features: IECEX、ATEX Certified
The explosion-proof camera can be applied for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.
Sun-shield, Wiper,Stainless steel 316L, IR distance up to 200 m, 100 to 240 VAC, Max power consumption 75W,IP68, Net weight 38 kg, 530 mm x 295 mm x 420 mm
Starlight Network Module
1/2.8” CMOS, 5 MP, 2592 (H) x 1944 (V) @ 25/30 fps, 5.3 to 159 mm focal length, 30 x optical zoom, 16 x digital zoom, Support face, human and vehicle detection
IVS: Perimeter, Single virtual fence, Double virtual fences, Loiter, Converse (the five functions support the accurate detection of vehicle and human), People counting
Features: Explosion-proof
Sun-shield, Wiper, Stainless steel 316L, 100 to 240 VAC, Max power consumption 70 W, IP68, Net weight 48 kg, 513 mm x 350 mm x 395 mm
Thermal
400 x 300 Sensor resolution, 25 mm motorized focus, 17 μm pixel size, 8 μm to 14 μm spectral range, Temperature measurement range -40 ℃ to 150 ℃, Support human and vehicle detection
IVS: Perimeter, Single virtual fence, Double virtual fences, Loiter, Converse (the five functions support the accurate detection of vehicle and human), People counting
Starlight Network Module
1/2.8” CMOS, 5 MP, 2592 (H) x 1944 (V)@25/30 fps, 5.3 to 159 mm focal length, 30 x optical zoom, 16 x digital zoom, Support face, human and vehicle detection
IVS: Perimeter, Single virtual fence, Double virtual fences, Loiter, Converse (the five functions support the accurate detection of vehicle and human), People counting
Features: SPECIAL WDR In/Outdoor IR ToF Camera
Image Device: ""320x240 CMOS / H.Angle: 92 º(W)
Min. Illumination: Color: Color / B/W: B/W
Sensor I/O: 1 Input / 1 Output
Weather Proof housing and cable
Features: 1920*1080 @60fps,color [email protected] ,140WDR,IP 67,IR 180M
* Built-in LoRaWAN® Gateway
* Support Connection with more than 2000 LoRaWAN® Sensors / Nodes
* High Capacity, High Compatibility, Embedded Network Server
* Receiving Data from 8 End-Devices Simultaneously
* Supprt IoT, PoE, SD card, up to 256G; 3-Axis Design
* Support H.265+/H.265/H.264+/H.264
* Integrated Cable Management
* Multi port: Alarm I/O, Audio I/O, DC 12V
* AI Based Video Content Analysis, People Counting, Face Detection, Heat Map
* IP67 Only for Camera Body
Features: 1920*1080@60fps,color [email protected] ,140WDR,IP 67,IR 65M
* Supprt 5G/4G/3G,P2P, Nano SIM
* Support PoE, SD card, up to 256G; 3-Axis Design
* Support H.265+/H.265/H.264+/H.264
* Integrated Cable Management
* Multi port: Alarm I/O, Audio I/O, DC 12V
* AI Based Video Content Analysis, People Counting, Face Detection, Heat Map
* IP67 Only for Camera Body
Features: 1920*1080@60fps""Color: [email protected],140dB, IR 180m
* Built-in LoRaWAN® Gateway
* Support Connection with ≥ 2000 LoRaWAN® Sensors / Nodes
* High Capacity, High Compatibility, Embedded Network Server
* Receiving Data from 8 End-Devices Simultaneously
* Supprt IoT, 5G/4G/3G, P2P, Nano SIM
* Support PoE, SD card, up to 256G; 3-Axis Design
* Support H.265+/H.265/H.264+/H.264
* Integrated Cable Management
* Multi port: Alarm I/O, Audio I/O, DC 12V
* AI Based Video Content Analysis, People Counting, Face Detection, Heat Map
* IP67 Only for Camera Body
Features: 1/2.8″ Progressive Scan CMOS
1920*1080@60fps,0.002,[email protected], 140dB,
* Support PoE; SD card, up to 256G
* Support H.265+/H.265/H.264+/H.264
* Multi port: RS485, Alarm I/O, Audio I/O, DC 12V
* AI Based Video Content Analysis, People Counting, Face Detection, Heat Map
MicroView Surveillance products are
designed and commissioned in the USA
